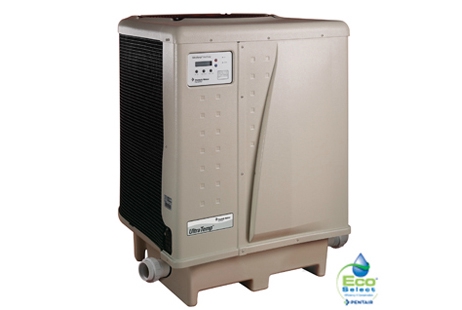

Simply the most economical way to heat your pool and spa
The industry's first heat pump charged with non-ozone depleting refrigerant, R410A
With today’s record energy costs, there’s never been a better time to invest in a heat pump. Compared to gas, oil or electric heaters, UltraTemp® High Performance Heat Pumps use just a fraction of the energy to generate the same amount of heat. In fact, just 20¢ worth of electricity produces $1.00 worth of heat generated by other methods. That means more comfortable water temperatures and longer swimming seasons for you and your family.
Best in Class Performance and Efficiency - Environmental Superior
Features
- 100% pure titanium heat exchanger assures corrosion-free performance for extra long life
- LCD control board displays an intuitive, menu-driven readout with easy to follow, full word messages - no more codes.
- AutoSet (time clock over-ride) feature monitors water temperature and turns the water circulation pump on and off as needed to maintain desired pool termperatures
- Automatic defrost feature senses refrigerant temperature and prevents UltraTemp from freezing, allowing the heat pump to operate at even lower temperatures
- Compatible with ALL automated control packages
- Long-life corrosion resistant plastic composite cabinet stands up to severe climates and pool chemicals
- Emerson Copeland Scroll Compressor on 60Hz, single phase models
- ETL listed for safe operation
- Thermostatic Expansion Valve (TXV) controls refrigerant flow for optimum effciency and BTU output over a wider operating range
- Highest effciency available, meets or exceeds existing codes and standards
- BTU and effciency performance independently certified by the Air-Conditioning, Heating and Refrigeration Institute, AHRI.
Electrical Supply - Voltage Requirements (Click on image to see it full screen)
COMPARING THE COST TO HEAT YOUR POOL & SPA
| HEATER/FUEL TYPE |
EFFICIENCY |
COST |
BTU/$1.00 |
| ELECTRIC RESISTENCE HEAT |
1 |
$0.12/kWh |
28,433 |
| LP GAS |
0.84 |
$2.73/Gal |
28,000 |
| NO. 2 HEATING OIL |
0.75 |
$3.75/Gal |
28,000 |
| NATURAL GAS |
0.84 |
$1.13/Therm |
74,336 |
| ULTRATEMP HEAT PUMP |
5.8 |
$0.12/kWh |
164,913 |
This chart illustrates how an UltraTemp heat pump generates 2.75 to 5.8 times more heat for the same cost. Costs are based on 2014 national average fuel costs and efficiencies (Source: Federal Register). Please consult your local provider for current pricing.
Clearly, a heat pump is the best choice for pool heating. Also clear is the best-in-class performance and value of the fully-featured UltraTemp heat pump. Contact your pool professional today to learn which model is right for your pool.
